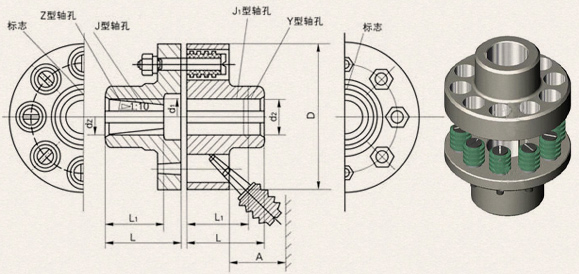

TL type coupling

Example of marking of TL type elastic sleeve coupling:
TL3 elastic sleeve pin coupling
Active end: Z-shaped shaft hole, C-shaped keyway, dz=16mm, L=30mm
Driven end: J-type shaft hole, B-type keyway, d2=18mm, L=42mm
TL3 coupling (ZC16×30/JB18×42) GB4323-84

Model	Allowable torque MP/ (N·m)	A allowable speed NP/ (r·min-4）		Shaft hole diameter d1/mm d2/mm dzmm		Shaft hole length			D mm	A mm	Quality kg	A moment of inertia kg·m2	Allowable relative displacement
						Y type	J, J1, Z type
		iron	steel	iron	steel	L/mm	L1/mm	L/mm					Radial/mm	Angular
TL1	6.3	6600	8800	9	9	20	14	-	70	18	1.16	0.0004	0.2	1°30`
				10,11	10,11	25	17	-
				12	12,14	32	20	-
TL2	16	5500	7600	12,14	12,14	32	20	42	80	18	1.64	0.001	0.2	1°30`
				16	16,18,19	42	30	42
TL3	31.5	4700	6300	16,18,19	16,18,19	42	30	42	95	35	1.9	0.002	0.2	1°30`
				20	20,22	52	38	52
TL4	63	4200	5700	20,22,24	20,22,24	52	38	52	106	35	2.3	0.004	0.2	1°30`
				-	25,28	62	44	62
TL5	125	3600	4600	25,28	25,28	62	44	62	130	45	8.36	0.011	0.3	1°30`
				30,32	30,32,35	80	60	82
TL6	250	330	3800	32,35,38	32,35,38	82	60	82	160	45	10.36	0.026	0.3	1°00`
				40	40,42	112	84	112
TL7	500	2800	3600	40,42,45	40,42,45, 48	112	84	112	190	45	15.6	0.06	0.3	1°00`
TL8	710	2400	3000	45,48, 50,55	45,48,50, 55,56	112	84	112	224	65	25.4	0.13	0.4	1°00`
				-	60,63	142	107	142
TL9	1000	2100	2850	50,55,56	50,55,56	112	84	112	250	65	30.9	0.20	0.1	1°00`
				60,63	60,63,65, 70,71	142	107	142
TL10	2000	1700	2300	63,65, 70,71,75	63,65,70, 71,75	142	107	142	315	80	65.9	0.64	0.4	1°00`
				80,85	80,85,90, 95	172	132	172
TL11	4000	1350	1800	80,85, 90,95	80,85,90, 95	172	132	172	400	100	122.6	2.06	0.5	0°30`
				100,110	100,110	212	167	212
TL12	8000	1100	1450	100,110, 120,125	100,110, 120,125	212	167	212	475	130	218.4	5.00	0.5	0°30`
				-	130	252	202	252
TL13	16000	800	1150	120,125	120,125	212	167	212	600	180	425.8	16.00	0.6	0°30`
				130,140, 150	130,140, 150	252	202	252
				160	160,170	302	242	302
