GT type coupling

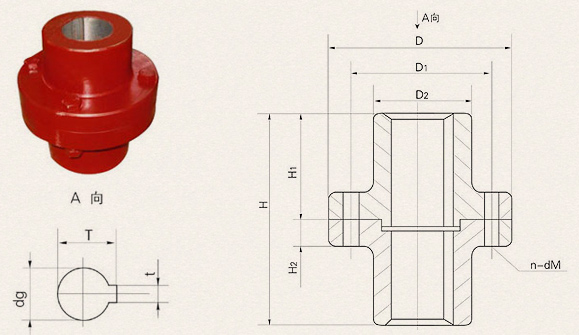

Main dimensions of GT type rigid flange coupling

Calibration symbol Aperture
dg(H7)		 Mmax
(Nm)		 Main dimensions Weight (kg)
D D1 D2 H H1 H2 n-dM T t
GT-30 30 500 115 90 65 112 54 18 4-M10 33.3 8 7
GT-35 35 900 115 90 65 112 54 18 4-M10 38.3 10 10
GT-40 40 1600 150 120 100 144 70 20 4-M12 43.3 12 16
GT-45 45 1600 150 120 100 144 70 20 4-M12 48.8 14 16
GT-50 50 2000 170 140 115 165 80 21 4-M12 53.8 14 20
GT-55 55 2000 170 140 115 165 80 21 4-M12 59.3 16 20
GT-65 65 4000 200 160 125 185 87 24 4-M16 69.4 18 35
GT-70 70 4000 200 160 125 185 87 24 4-M16 74.9 20 35
GT-80 80 7500 200 160 130 190/255 92/125 26 4-M16 85.4 22 50
GT-90 90 9000 240 200 150 255 125 28 6-M16 95.4 25 75
GT-95 95 9000 240 200 150 255 125 28 6-M16 100.4 25 75
GT-100 100 12000 240 200 165 264 134 32 6-M16 106.4 28 110
GT-110 110 18000 255 220 180 312 155 32 6-M18 116.4 28 130
GT-120 120 18000 255 220 180 312 155 32 6-M18 127.4 32 155
GT-130 130 28000 340 280 220 399 197 34 6-M18 137.4 32 240
GT-140 140 28000 340 280 220 399 197 34 6-M18 148.4 36 272
GT-150 150 29000 380 320 250 450 206 45 8-M20 158.4 36 302
GT-160 160 29000 390 330 260 450 206 45 8-M20 169.4 40 325
GT-180 180 31000 425 360 300 610 320 50 8-M24 190.4 45 365
GT-200 200 33750 440 380 310 610 320 55 8-M24 210.4 45 392
