XD type rack

This series of racks is a relatively new standard rack in the chemical industry, and is a rack matching the stirring transmission device (HG21563-95). XD type is a single fulcrum frame, the output shaft of the reducer is connected with the stirring shaft with a DF type coupling, XS type is a double fulcrum frame, the reducer output shaft is connected with an HL type coupling, and the two fulcrums are connected by a DF type coupling Shaft connection. The frame is divided into A type (shaft seal adopts 2001, 2003, 2004, 2006 type mechanical seal) or B type (shaft seal (2002, 2005, 2007 type mechanical seal or 506, 516, 606, 616 type stuffing box). Frame The output port can be connected with the installation bottom cover and the kettle mouth flange listed in Part IX (Section 2).
This series of racks has strong versatility. Due to the selection of DF coupling and the shaft resting device for installing the bottom cover, the short belt can be removed in the side window of the rack without removing the reducer and the rack. couplings, bearing chambers and mechanical seals or stuffing boxes.

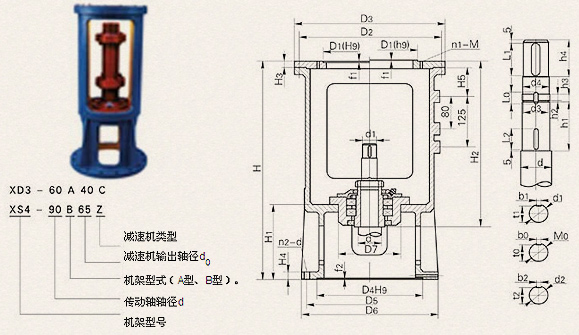

1. XD type single fulcrum rack

Main parameters and dimensions (nominal diameter 200, 250, 300)

frame model	frame Nominal diameter	transmission shaft Shaft diameter d	The shaft diameter d1 of the upper end of the drive shaft	Reducer output shaft diameter d0	input port	output port					Outline and other dimensions										Bearing Type	Weight (kg)
						D4 H9	D5	D6	n2-d	f2	Type A			Type B			H3	H4	H5	D7 H8/f7		A型	B型
											H	H1	H2	H	H1	H2
XD1	200	30	20	12	table	245	295	340	8-22	6	575	220	415	730	295	495	17	24	85	180	46209	57	61
				14
				18
		40	30	25									415			495					46209	57	60
				30
XD2	250	50	40	30		290	350	395	12-22	6	750	268	556	995	388	681	20	30	100	245	46214	106	116
				35
				40
		60	45	35									556			681					46214	107	117
				40
				45
		70	55	45									565			690					46217	104	114
				50
				55
XD3	300	60	45	35		320	400	445	12-22	6	795	279	595	1040	399	720	20	30	100	280	46216	153	164
				40
				45
		70	55	45									595			720					46216	150	161
				50
				55
		80	65	55									606			731					46218	149	160
				60
				65

Rack Model	Rack Nominal Diameter	Drive shaft diameter d	The shaft diameter d1 of the upper end of the drive shaft	Drive shaft end size
Rack Model	Rack Nominal Diameter	Drive shaft diameter d	The shaft diameter d1 of the upper end of the drive shaft	M0	d2(h9)	d3	d4	h1	h2	h3	h4	L1	L0	L2	b1	b0	b2	t1	t0	t2
XD1	200	30	20k6	M25×1.5	25	22.8	22	97	3	15	48	40	23	30	6	5	5	16.5	21	22
XD1	200	40	30k6	M35×1.5	35	32.8	32	97	3	15	48	40	24	30	8	6	6	26	31	31.5
XD2	250	50	40k6	M45×1.5	45	42.8	42	105	3	15	58	50	24	30	12	6	6	35	41	41.5
		60	45k6	M55×2	55	52	50	115	4	18	68	60	30	40	14	8	8	39.5	51	51
		70	55m6	M65×2	65	62	60	125	4	18	83	75	30	40	16	8	8	49	61	61
XD3	300	60	45k6	M55×2	55	52	50	125	4	18	68	60	30	40	14	8	8	39.5	51	51
		70	55m6	M65×2	65	62	60	125	4	18	83	75	30	40	16	8	8	18	61	61
		80	65m6	M75×2	75	72	70	139	4	18	98	90	32	50	18	10	10	58	69	70

Main parameters and dimensions of XD type single fulcrum frame (nominal diameter 400, 500, 700)

Rack Model	Rack Nominal Diameter	Drive shaft diameter d	The shaft diameter d1 of the upper end of the drive shaft	Reducer output shaft diameter d0	input port	output port					Outline and other dimensions										Bearing Type	Weight (kg)
						D4 H9	D5	D6	n2-d	f2	Type A			Type B			H3	H4	H5	D7		Type A	Type B
											H	H1	H2	H	H1	H2
XD4	400	90	75	55	table	415	515	565	16-26	6	890	310	691	1115	420	806	25	35	100	310	46222	251	256
				65
				70
		100	85	65									691			806					46222	256	270
				70
				80
XD5	500	100	85	65		520	620	670	20-26	6	1075	369	821	1325	494	946	30	40	140	335	46224	409	435
				70
				80
		110	90	70									821			946					46224	405	431
				80
				90
		120	100	90									829			954					46228	401	427
				95
				100
		130	110	95									829			954					46228	395	421
				100
				110
XD6	700	120	100	90		670	780	830	28-26	6	1185	399	909	1415	514	1024	35	45	100	400	46228	729	766
				95
				100
		130	110	95									909			1024					46228	721	758
				100
				110
		140	120	100									927			1042					46232	729	766
				110
				120
		160	140	120									943			1058					46234	697	734
				130
				140
XD7	900	140	120	100		940	1070	1124	40-30	6.4	1320	440	1021	1560	570	1141	40	50	140	520	46232	985	874
				110
				120
		160	140	120									1037			1157					46234	1000	889
				130
				140
		180	160	140									1050			1170					46240	1010	899
				150
				160
		200	180	160									1070			1190					46244	1032	921
				170
				180
