JXLD type rack

Bengong frame can be directly connected with 10 types of XLD reducer in our factory

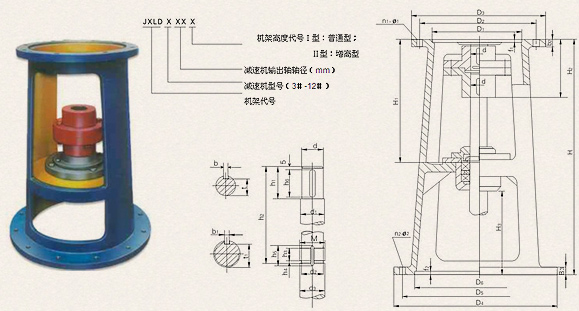

Example of model calibration method:

Main parameters and dimensions of JXLD frame

rack code	Outlet shaft diameter d of reducer	Agitator shaft end size
rack code	Outlet shaft diameter d of reducer	d1	M	d2	d3(K6)	h1	h2	h3	h4	h5	h6	b	b1	t	t1
JXLD3	35	40	M45×1.5	42.8	45	60	215	10	3	16	50	10	6	30	41
JXLD4	45	50	M55×2	52	55	75	235	14	4	22	69	14	8	39.5	51
JXLD5	55	60	M65×2	62	65	75	301	14	4	22	70	16	8	49	61
JXLD6	65	70	M75×2	72	75	90	277	16	4	25	85	18	10	58	70
JXLD7	80	85	M90×2	87	90	105	316	20	4	30	100	22	12	71	84
JXLD8	90	95	M100×2	97	100	125	320	20	4	30	120	25	12	81	94
JXLD9	100	105	M110×2	107	110	125	308	20	4	31	120	28	14	90	104
JXLD10	110	115	M120×2	117	120	155	267	24	4	35	150	28	14	100	114
JXLD11	130	135	M140×2	137	140	155	301	28	4	39	150	32	14	119	132
JXLD12	180	190	M200×3	196	200	284	377	36	4	48	280	45	16	165	190

rack code	Outlet shaft diameter d of reducer	Outline and connection size												Type I			Type II
rack code	Outlet shaft diameter d of reducer	H1	H2	D3	D2	D1	n1-φ1	D4	D5	D6(H9)	t2	b2	n2-φ2	H	H3	Weight (kg)	H	H	Weight (kg)
JXLD3	35	291	136	230	200	170	6-12	410	360	300	6	18	6-18	520	170	55	610	260	80
JXLD4	45	335	175	260	230	200	6-12	450	400	335	6	18	6-18	570	155	80	670	255	86
JXLD5	55	404	178	340	310	270	6-13	500	450	385	6	22	8-18	650	157	110	750	257	120
JXLD6	65	402	215	400	360	316	8-16	530	480	410	8	22	12-18	660	168	130	760	268	145
JXLD7	80	441	230	430	390	345	8-18	565	510	430	8	24	12-22	740	194	160	860	314	178
JXLD8	90	471	276	490	450	400	12-18	565	510	430	8	28	12-22	800	212	208	920	332	230
JXLD9	100	496	313	580	520	455	12-22	580	520	455	10	30	12-22	810	191	235	920	301	262
JXLD10	110	475	363	650	590	520	12-22	650	690	520	12	30	12-22	830	221	300	950	341	345
JXLD11	130	521	375	880	800	680	12-38	880	800	680	12	30	12-37	850	185	480	970	305	538
JXLD12	180	757	664	1160	1020	900	8-39	1160	1020	900	12	45	8-39	1200	235		350	385

Note: The "h2" noted in the illustration is only matched with the XLD series reducer in this sample. If other models or reducers from other manufacturers are selected, "H2" needs to be calculated separately. Type I is the common type; Type II is the heightened type, except for H , H2 size is increased, other sizes are the same as type I.
