SJ type rack

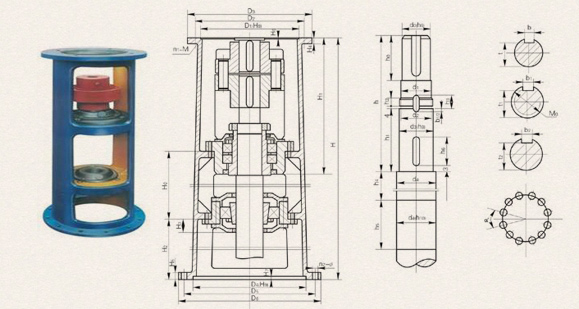

Main parameters and dimensions of SJ, LSJ double fulcrum racks

rack code H0 H1 H3 H4 H5 H6 H7 D1 D2 D3 n1-M D4 D5 D6 a° n2-φ
SJ55AB 450 402 58 22 24 6 6 270 310
305		 340 6-M10
8-M16		 325 400 435 30 12-φ14
SJ65AB 450 487 58 22 24 6
5		 6 316 360 400 8-M12
(8-M16)		 350 420 460 30 12-φ18
SJ70AB 450 487 528 22 24 6
5		 6 316 (320)
320		 360 400 8-M12
8-M16		 350 420 460 30 12-φ18
SJ80AB 450 545 60 25 28 6
5		 8 345
360		 390
410		 430
460		 8-M16
8-M20		 380 455 495 30 12-φ23
SJ90A 600 569 69 25 40 7 8 400 450 490 12-M16
(12-M20)		 430 510 555 30 12-φ23
SJ100AB 600 685 61 30 40 9
5		 10 455 (460)
470		 520 580 12-M20 480 560 600 22.5 16-φ23
SJ110A 600 685 61 38 40 11 10 520 590 650 12-M20 560 650 700 22.5 16-φ27
SJ120A 600 685 61 38 40 11 10 520 590 650 12-M20 560 650 700 22.5 16-φ27
SJ130AB 650 761 85 40 45 11
9		 10 680 800 880 12-M30 720 810 880 18 20-φ27
SJ140A 650 761 85 40 45 11
9		 12 680 800 880 12-M30 720 810 880 18 20-φ27
SJ150AB 650 761 76 50 50 14
10		 12 820 940 1020 16-M30 720 810 880 18 16-φ33
SJ160AB 650 780 81 50 50 14
10		 12 820 940 1020 16-M30 840 940 1020 22.5 16-φ33
SJ180AB 650 910 83 50 50 14
10		 12 960 1080 1160 20-M30 970 1080 1160 18 20-φ33
Model Agitator shaft end size SJ type
h(A/B) h0 h1 h2 h3 h4 h5 h6 h7 d0 d1 d2 M0 d3(h9) d4 b b2 b2 t t1 t2 H H2 Weight (kg)
SJ55AB 307/ 302 80 118 15 24 300 120 40 3 55 57 57 M60×2 60 65 16 8 8 49 56 56 1070 312 170
SJ65AB 373 95 143 18 32 275 135 50 3 65 72 72 M75×2 72 80 18 10 10 58 59 70 1140 307 261
SJ70AB 373/ 367 95 143 18 32 275 135 50 3 70 72 72 M75×2 75 80 20 10 10 62.5 69 70 1140 307 261
SJ80AB 422/ 385 95 163 18 32 250 139 60 3 80 81 82 M85×2 85 90 22 10 10 71 79 80 1230 354 372
SJ90A 436 115 168 20 36 380 162 60 3 90 91 92 M95×2 95 110 25 12 12 81 89 90 1400 363 427
SJ100AB 532/ 510 135 178 24 42 360 182 60 3 100 110 112 M115×2 115 125 28 14 14 90 109 109.5 1510 350 515
SJ110A 489 145 178 24 42 380 182 60 3 110 111 112 M115×2 115 125 28 14 14 100 109 109.5 1510 350 621
SJ120A 489 145 178 24 42 380 182 60 3 120 122 122 N125×2 115 125 32 14 14 109 119 119.5 1510 350 641
SJ130AB 537/ 545 205 208 28 46 370 200 70 3 130 135 137 M140×2 140 150 32 14 14 119 132 134.5 1610 374 994
SJ140A 537 205 208 28 48 370 200 70

3

 130 135 137 M140×2 140 150 32 14 14 119 132 134.5 1610 374 994
SJ150AB Depends on the reducer model 220 208 32 52 370 200 70 3 150 155 156 M160×3 160 170 36 16 16 138 152 154 1660 410 1050
SJ160AB 220 227 32 52 340 215 80 3 160 165 166 M170×3 170 180 40 16 16 147 182 164 1660 410 1060
SJ180AB 290 242 36 58 310 230 90 3 180 185 186 M190×3 190 200 45 18 18 165 180 182 1710 402 1220
