DJ type rack

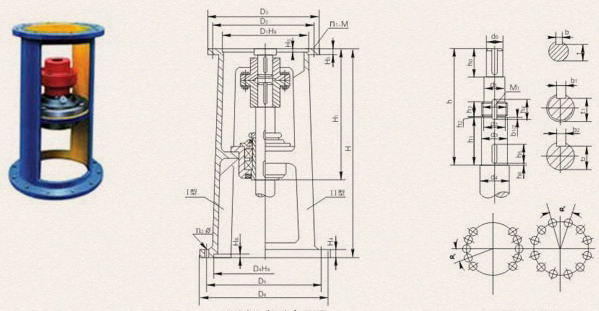

Main parameters and dimensions of DJ, LDJ type single fulcrum racks

model	H1	H3	H4	H5	H6	input port				output port
model	H1	H3	H4	H5	H6	D1	D2	D3	n1-M	D4	D5	D6	a°	n2-φ
DJ30AB	320	15	20	4	6	140 200	160 230	190 260	4-B10 6-M12	240	285	315	Ⅰ20 Ⅱ30	10-φ14 12-φ14
DJ35A	334	17	20	5	6	170	200	230	6-M10 (6-M12)	260	320	360	Ⅰ20 Ⅱ30	10-φ14 12-φ14
DJ40AB	334	17	20	4	6	200 230	230 260	260 290	6-M10 6-M12	260	320	360	Ⅰ20 Ⅱ30	10-φ14 12-φ14
DJ45A	338	20	20	5	6	200	230	260	6-M10 (6-M12)	260	320	360	Ⅰ20 Ⅱ30	10-φ14 12-φ14
DJ55AB	372	22	24	6 5	6	270	310 305	340	6-M10 8-M16	325	400	435	30	12-φ14
DJ65A	447	22	24	6	6	316(320)	360	400	8-M12 (8-M16)	350	420	460	30	12-φ18
DJ70AB	447	22	24	6 5	6	316(320) 320	360	400	8-M12 (8-M16)	350	420	460	30	12-φ18
DJ80AB	495	22	28	6 5	8	345 360	390 410	430 460	8-M16 (8-M20)	380	455	495	30	12-φ18
DJ90A	519	22	28	7	8	400	450	490	12-M16 (12-M20)	430	510	555	30	12-φ23
DJ100AB	535	25	28	9 5	10	455(460) 470	520	580	12-M20	480	560	600	22.5	16-φ23
DJ110AB	660	30	25	11 6	10	520	590	650	12-M20	560	650	700	22.5	16-φ27
DJ120A	660	30	38	11	10	520	590	650	12-M20	560	650	700	22.5	16-φ27
DJ130AB	790	45	40	12 9	10	680	800	880	12-M30	720	810	880	18	20-φ27
DJ140A	790	45	40	12 9	12	680	800	880	12-M30	720	810	880	18	20-φ27
DJ150	790	45	45	14 10	12	820	940	1020	16-M30	840	940	1020	22.5	16-φ33
DJ160	810	50	50	14 10	12	820	940	1020	16-M30	840	940	1020	22.5	16-φ33
DJ180	910	55	50	14 10	12	960	1080	1160	20-M30	970	1080	1160	18	20-φ33

model	Agitator shaft end size																				DJ type
model	h (A/B)	h0	h1	h2	h3	h4	h5	h6	d0	d1	d2	M1	d3(h9)	zd4	b	b1	b2	t	t1	t2	H	Weight kg
DJ30AB	250/ 254	53	103	3	13	22	30	3	30	32	32.8	M35 ×1.5	35	40	8	6	6	26	31	31.5	550	46
DJ35A	253	53	113	3	15	24	40	3	35	42	42.8	M45 ×1.5	45	50	10	6	6	30	41	41.5	600	79
DJ40AB	242/ 249	69	113	3	15	24	40	3	40	42	42.8	M45 ×1.5	45	50	12	6	6	35	41	41.5	600	79
DJ45A	246	69	113	3	15	28	40	3	45	47	47.8	M50 ×1.5	50	65	14	8	8	39.5	46	46	600	84
DJ55AB	274/ 272	80	118	4	15	27	40	3	55	57	57	M60 ×2	60	65	16	8	8	49	56	56	660	151
DJ65A	333	87	143	4	18	32	50	3	65	71	72	M75 ×2	75	80	18	10	10	58	69	70	720	171
DJ70AB	333/ 327	87	143	4	18	32	50	3	70	71	72	M75 ×2	75	80	20	10	10	62.5	69	70	720	171
DJ80AB	371/ 340	91	163	4	18	32	60	3	80	81	82	M85 ×2	85	90	22	10	10	71	79	80	785	209
DJ90A	375	125	168	4	20	36	60	3	90	91	92	M95 ×2	95	4110	25	12	12	81	89	90	805	266
DJ100AB	386/ 360	134	178	4	24	42	60	3	100	111	112	M115 ×2	115	125	28	14	14	90	109	109.5	820	347
DJ110A	456	155	178	4	24	42	60	3	110	112	112	M115 ×2	115	125	28	14	14	100	108	109.5	1100	533
DJ120A	456	155	178	4	24	42	60	3	120	122	122	M125 ×2	125	140	32	14	14	109	119	119.5	1100	553
DJ130AB	570/ 570	197	208	4	28	46	70	3	130	135	137	M140 ×2	140	150	32	14	14	119	132	134.5	1200	723
DJ140A	570	197	208	4	28	48	70	3	140	145	147	M150 ×2	150	160	36	16	16	128	142	144	1200	743
DJ150	Depends on the reducer model	210	208	4	32	52	70	3	150	155	156	M160 ×3	160	170	36	16	16	138	152	154	1200	765
DJ160		210	227	4	32	52	80	3	160	165	166	M170 ×3	170	180	40	16	16	147	162	164	1200	780
DJ180		235	242	4	36	58	90	3	180	185	186	M190 ×3	190	200	45	18	18	165	180	182	1280	887

Note: The "h" in the illustration is only matched with the BLD, LC-Ⅱ, DC-Ⅱ series reducers in this catalog. If other types of reducers or other manufacturers are selected, the "h" needs to be calculated separately. The height of the lower space of the increased LDJ frame can accommodate 205, 206 or 207 double-end mechanical seals.
